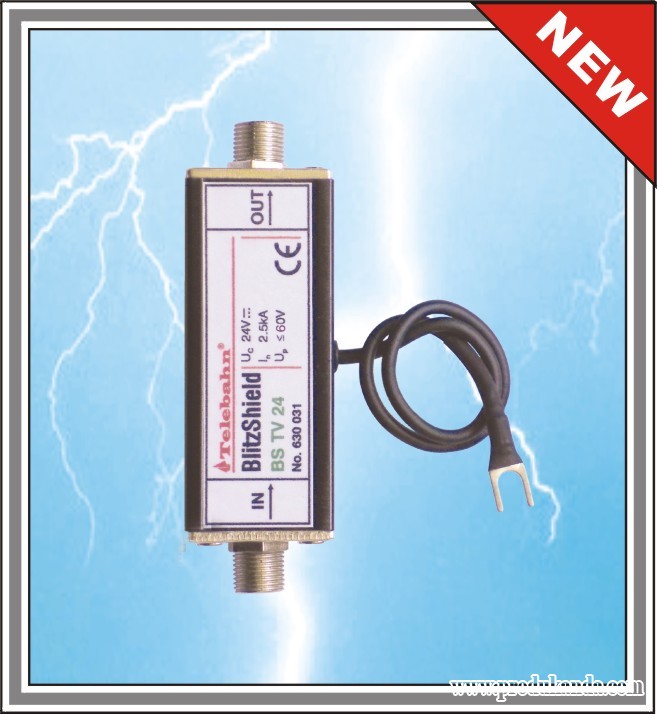

Product Description：
Designed according to GB 18802.21-2004 / IEC 61643-21:2000. Applied in 75W satellite and TV cable system. DIN rail optional.
Main character：
※ Good discharge capacity, low voltage protection level
※ Multiple protection, quick response, no interruption
※ F socket connection, easy for installation
※ Core components are from international well known supplier
Parameters：
|
Type |
|
BS C TV 24 |
|
|
Order No. |
|
630 030(A)/630 031(B) |
|
|
Rated voltage (max. continuous voltage) |
Uc |
24V- |
|
|
Nominal current |
IL |
2A |
|
|
Nominal discharge current (8/20) |
In |
≤300V（Iine-shield） |
|
|
Voltage protection level at In |
Up |
≤60V（Iine-shield） |
|
|
Voltage protection level at 1Kv/µs |
Up |
5-3000MHz |
|
|
Transmission range |
f |
1.2dB(5-862MHz); 1.4dB(862-2400MHz); 2dB(2400-3000MHz); |
|
|
Insertion loss |
aE |
≥14dB(5-47MHz); ≥18dB(47-3000MHz); |
|
|
Return loss (input /output) |
aR |
≥85dB(5-300MHz); ≥80dB(300-470MHz); |
|
|
Shield attenuation |
aS |
≥75dB(470-1000MHz); ≥55dB(1000-3000MHz); |
|
|
Impedance |
Z |
75Ω |
|
|
Response time |
tA |
≤1ns |
|
|
Operating temperature range |
|
-40℃…+80℃ |
|
|
Connection (input/output) |
|
F socket |
|
|
Shield earthing |
|
Indirectly via integrated spark gap and an 1.5mm2 ×300mm outdoor line |
|
|
Test standards |
|
YD/T 1542-2006;GB 18802.21-2004;IEC 61643-21:2000 |
|
|
Certification |
|
CE (LVD，EMC) |
|
|
BS C TV 24 Accessory: Earthing Busbar |
|||
|
Type |
|
E-5 |
E-10 |
|
Order No. |
|
630 002 |
630 003 |
