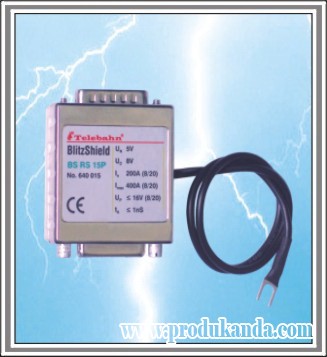

Product Description：
For use at LPZ 2-3 boundary. The series of BS...P provide surge protection for RS 485, RS 422 or RS 232 signal devices from damage, such as surge voltage, operating over voltage, electrostatic discharging and so on.
Main character：
※ High discharge capacity, low voltage protection, quick response
※ Does not impact the normal work of data management devices and system
※ Apply for high speed transmission devices
※ Core components are from international well known supplier
Parameters：
|
Type |
|
BS RS 15P |
|
Order No. |
|
640 015 |
|
Nominal voltage |
UN |
5V- |
|
Rated voltage (max. Continuous voltage) |
Uc |
8V- |
|
Nominal (8/20) discharge current (10/1000) |
In |
200A(L/SG),800A (SG/PG) 40A(L/SG),100A (SG/PG) |
|
Max. discharge current (8/20) |
Imax |
400A(L/SG),1300A(SG/PG) |
|
Voltage protection level at In |
Up |
≤16V(L/SG, SG/PG,L/L) |
|
Voltage protection level at 1kV/µs |
Up |
≤11V(L/SG, SG/PG,L/L) |
|
Response time |
tA |
≤1ns |
|
Max. data transmission rates |
VS |
1MBit/s |
|
Operating temperature range |
θ |
-40℃…+80℃ |
|
Protective lines |
|
2 two-core lines |
|
Pinning |
|
2/9:1st pair,8:SG;4/11:2nd pair,1:PG Standby lines disconnected |
|
Connection Input Output |
|
D-Sub plug/socket, 15 pins |
|
Earthing via |
|
Outgoing earth line 1.5mm2, long: 300mm |
|
Installation |
|
Connection line, pluggable |
|
Enclosure material |
|
Plastic, metallised |
|
Test standards |
|
YD/T 1542-2006;GB 18802.21-2004;IEC 61643-21:2000 |
|
Certification |
|
CE (LVD，EMC) |
